PE quick connect fittings
PE quick connect fittings for fast, tool-free installation in large pipeline projects.
1. Easy Installation
No professional skills needed; simple wrench-based connection in minutes.
2. Cost & Time Saving
Significantly shortens construction periods and reduces labor costs.
3. Complete Range

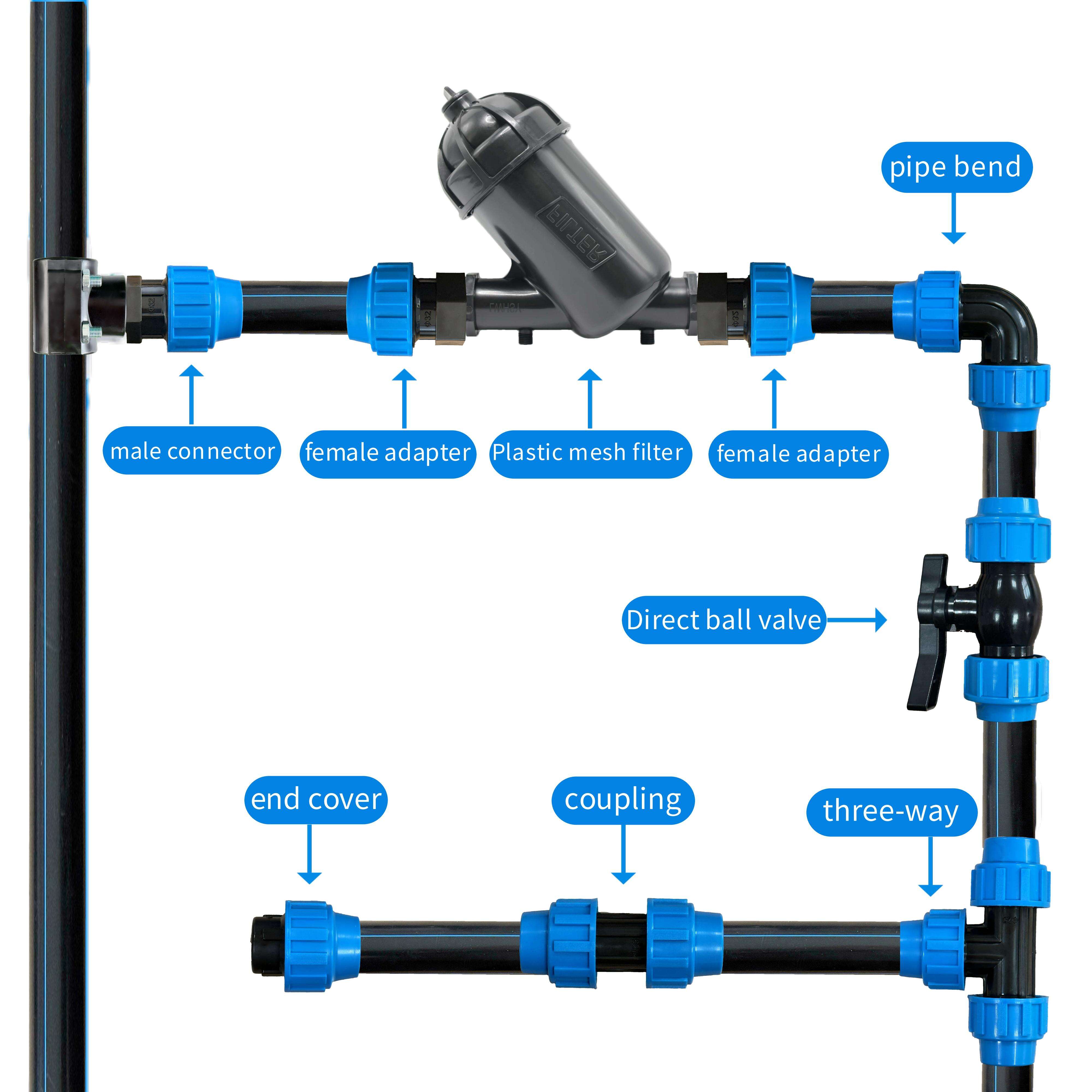

Includes external/internal threaded joints, elbow, cap, coupling, tee, and reducers. Sizes from 3/4″ to 2.0″ (25-63mm).
- Overview
- Product Parameters
- Recommended Products
The installation process of PE quick connect fittings does not require professional skills. Ordinary construction personnel only need to follow simple operating instructions and use basic tools such as wrenches to complete the connection in a short period of time. This feature is particularly advantageous in large-scale pipeline laying projects, as it can significantly shorten the construction period and reduce labor costs.
Product Parameters
|

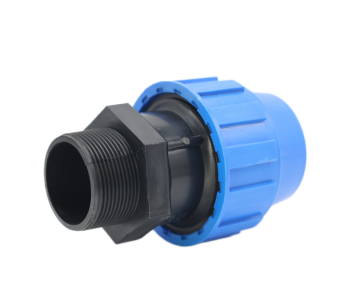

external threaded joint |
||
|
|
item NO |
Diameter (mm) |
|
1025 |
3/4″ |
|
|
1032 |
1″ |
|
|
1040 |
1.2″ |
|
|
1050 |
1.5″ |
|
|
1063 |
||
|

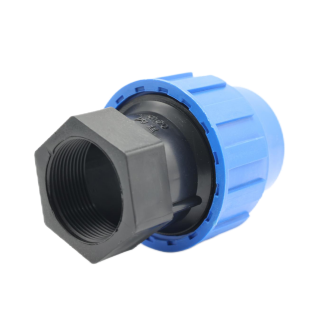

built-in threaded join |
||
|
|
item NO |
Diameter (mm) |
|
2025 |
3/4″ |
|
|
2032 |
1″ |
|
|
2040 |
1.2″ |
|
|
2050 |
1.5″ |
|
|
2063 |
2.0″ |
|
|
90 degrees Elbow |
||
|
|
item NO |
Diameter (mm) |
|
3025 |
3/4″ |
|
|
3032 |
1″ |
|
|
3040 |
1.2″ |
|
|
3050 |
1.5″ |
|
|
3063 |
2.0″ |
|
|
end cap |
||
|
|
item NO |
Diameter (mm) |
|
4025 |
3/4″ |
|
|
4032 |
1″ |
|
|
4040 |
1.2″ |
|
|
4050 |
1.5″ |
|
|
4063 |
2.0″ |
|
|

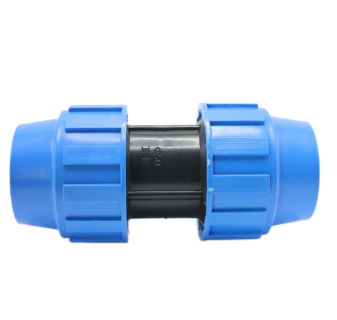

coupling |
||
|
|
item NO |
Diameter (mm) |
|
5025 |
3/4″ |
|
|
5032 |
1″ |
|
|
5040 |
1.2″ |
|
|
5050 |
1.5″ |
|
|
5063 |
2.0″ |
|
|

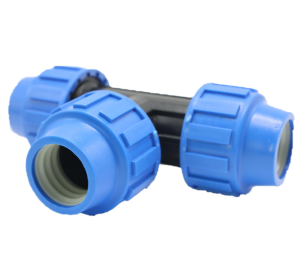

three-way |
||
|
|
item NO |
Diameter (mm) |
|
6025 |
3/4″ |
|
|
6032 |
1″ |
|
|
6040 |
1.2″ |
|
|
6050 |
1.5″ |
|
|
6063 |
2.0″ |
|
|

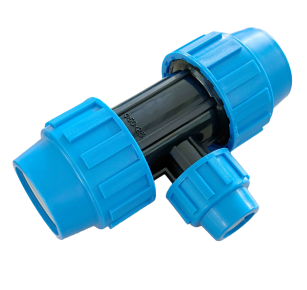

Variable diameter tee |
||
|
|
item NO |
Diameter (mm) |
|
s32-25 |
1″ × 3/4″ |
|
|
s50-25 |
1.5″ × 3/4″ |
|
|
s50-32 |
1.5″ × 1″ |
|
|
s63-25 |
2.0″ × 3/4″ |
|
|
s63*32 |
2.0″ × 1″ |
|
|
s63-50 |
2.0″ × 1.5″ |
|
|

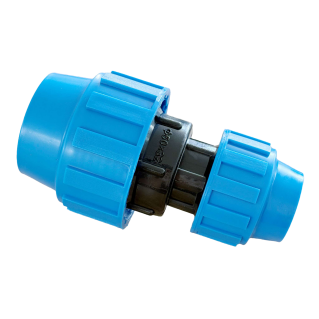

Variable diameter coupling |
||
|
|
item NO |
Diameter (mm) |
|
f32-25 |
1″ × 3/4″ |
|
|
f50-25 |
1.5″ × 3/4″ |
|
|
f50-32 |
1.5″ × 1″ |
|
|
f63-25 |
2.0″ × 3/4″ |
|
|
f63*32 |
2.0″ × 1″ |
|
|
f63-50 |
2.0″ × 1.5″ |
|
